Jinko Tiger Neo 66HL5-BDV 700,705w,710w,715W
Module number:Tiger Neo 66HL5-BDV 700-715W
Weight:37.5 kg
Package:33pcs/pallet;594pcs/40hq
Specification:2384*1303*33mm
Trademark:Jinko solar
Origin:China

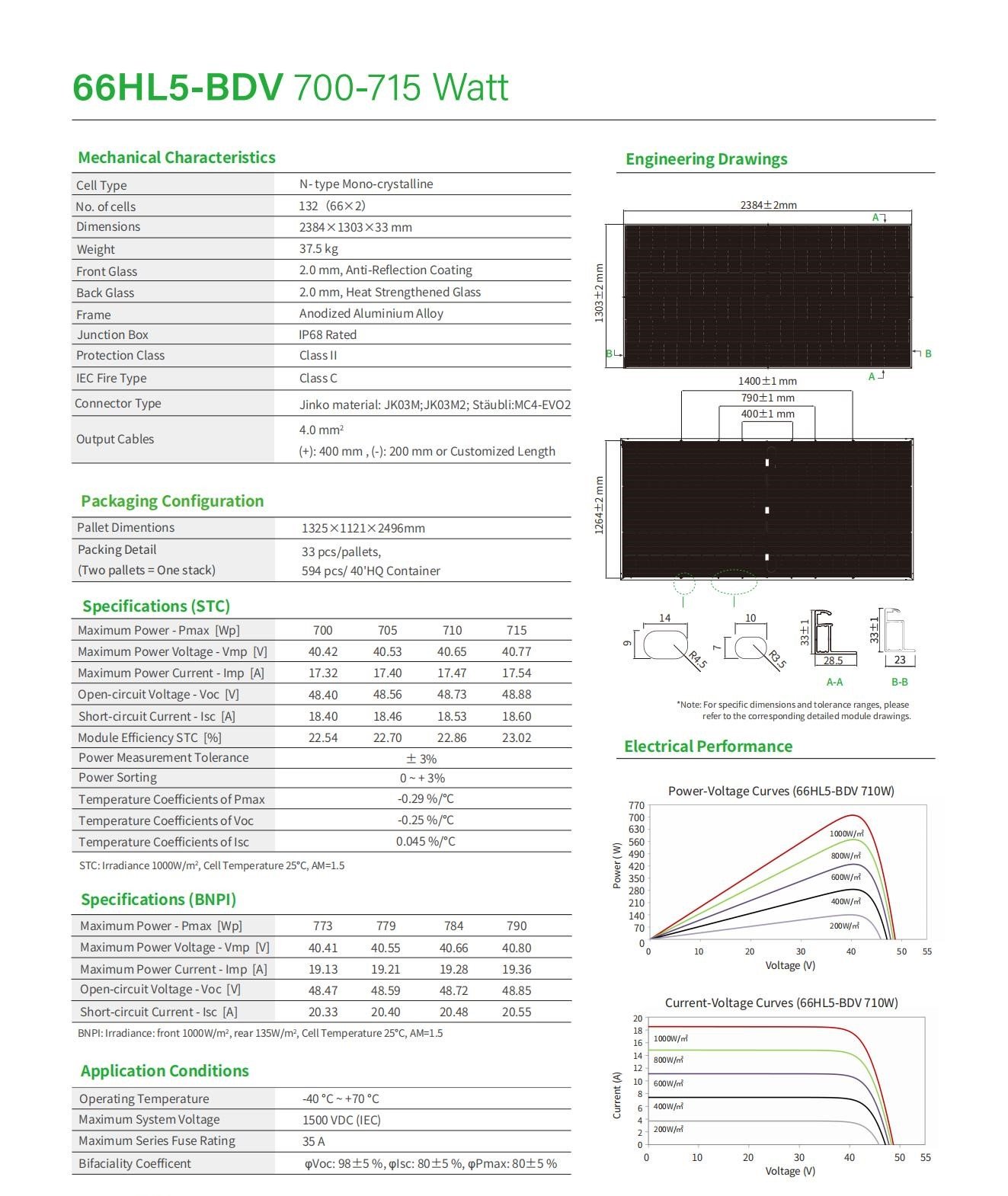

Product Details
| CellType | N-type Mono-crystalline |
| No.of cells | 132(66×2) |
| Dimensions | 2384×1303×33 mm |
| Weight | 37.5kg |
| Front Glass | 2.0 mm,Anti-Reflection Coating |
| Back Glass | 2.0 mm,Heat Strengthened Glass |
| Frame | Anodized AluminiumAlloy |
| Junction Box | P68 Rated |
| Protection Class | Classl |
| IECFire Type | ClassC |
| Connector Type | Jinko material:JK03M;JK03M2;Stäubli:MC4-EVO2 |
| Output Cables | 4.0 mm2 (+):400 mm , (-): 200 mm orCustomized Length |
Manufacturing Technique
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
